Raceline

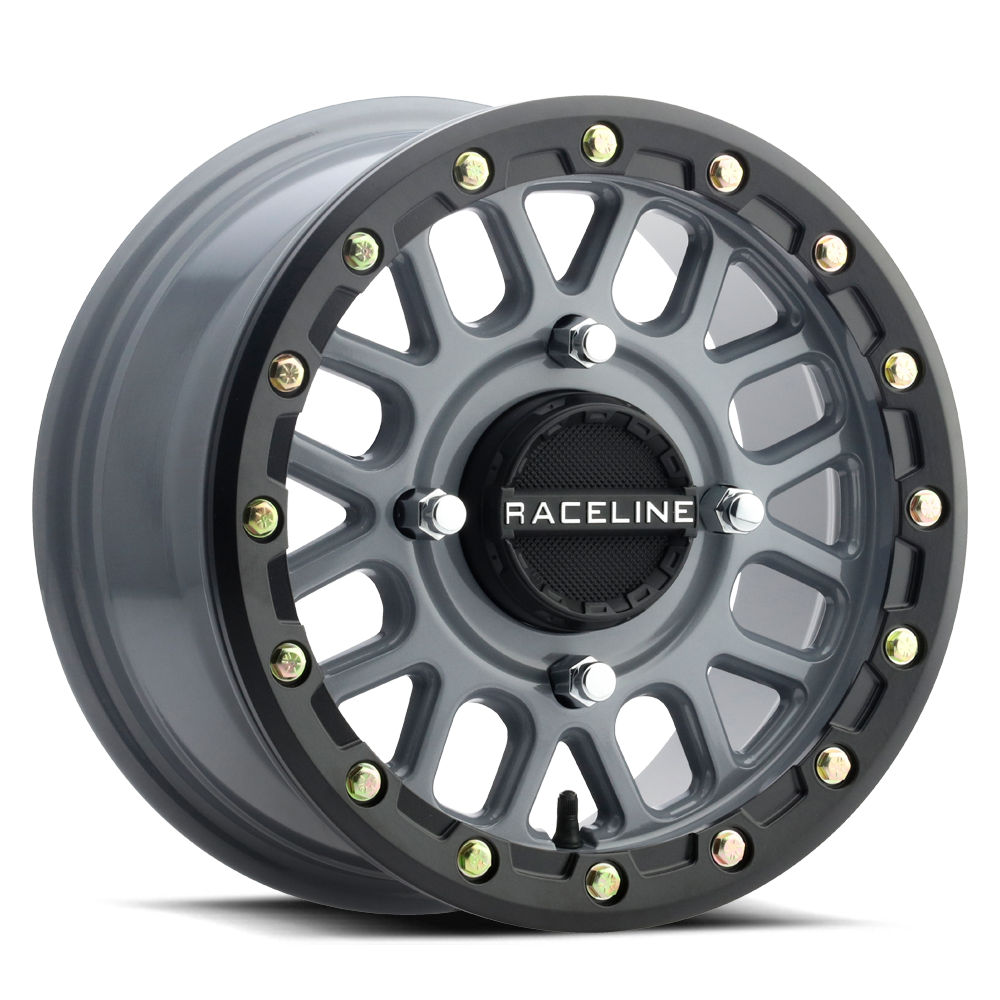

A93SG Podium Beadlock

A93SG Podium Beadlock

$209.00 USD
$209.00 USD
Sale Sold out
Size
Patent #D934769

Iconic 8 spoke mesh style design
Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with US made Grade 8 zinc beadlock hardware included
UTV Beadlock Bolts = 1" length
Engineered to be one of the strongest wheels available
Available in both Satin Black and Stealth Grey finishes
Includes a satin black snap-in cap with embossed chrome Raceline logo
For thicker beaded tires, Raceline beadlock ring spacers are available to ensure proper ring seating.
Available in both 14 and 15 diameters for most UTV bolt patterns
The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more

* Raceline Beadlock mounting instructions are available to view and print in the second image below.

  • Click to View Raceline 2021 ATV-UTV Wheel Application Guide

    • Sizes

    Item Number Size BOLT PATTERN (mm) Offset Load Rating Center Cap Weight
    A93SG-47011+10 14X7 4X110 10 1200 CPR-A82-110 17
    A93SG-47037+10 14X7 4X137 10 1200 CPR-A82-156 17
    A93SG-47037+38 14X7 4X137 38 1200 CPR-A82-156 17
    A93SG-47056+10 14X7 4X156 10 1200 CPR-A82-156 17
    A93SG-47056+38 14X7 4X156 38 1200 CPR-A82-156 17
    Item Number Size BOLT PATTERN (mm) Offset Load Rating Center Cap Weight
    A93SG-56037+40 15X6 4X137 40 1200 CPR-A82-156 19
    A93SG-56056+40 15X6 4X156 40 1200 CPR-A82-156 21

    Patent #D934769

    Iconic 8 spoke mesh style design
    Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with US made Grade 8 zinc beadlock hardware included
    UTV Beadlock Bolts = 1" length
    Engineered to be one of the strongest wheels available
    Available in both Satin Black and Stealth Grey finishes
    Includes a satin black snap-in cap with embossed chrome Raceline logo
    For thicker beaded tires, Raceline beadlock ring spacers are available to ensure proper ring seating.
    Available in both 14 and 15 diameters for most UTV bolt patterns
    The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more

    * Raceline Beadlock mounting instructions are available to view and print in the second image below.

  • Click to View Raceline 2021 ATV-UTV Wheel Application Guide

    • Sizes
