Raceline

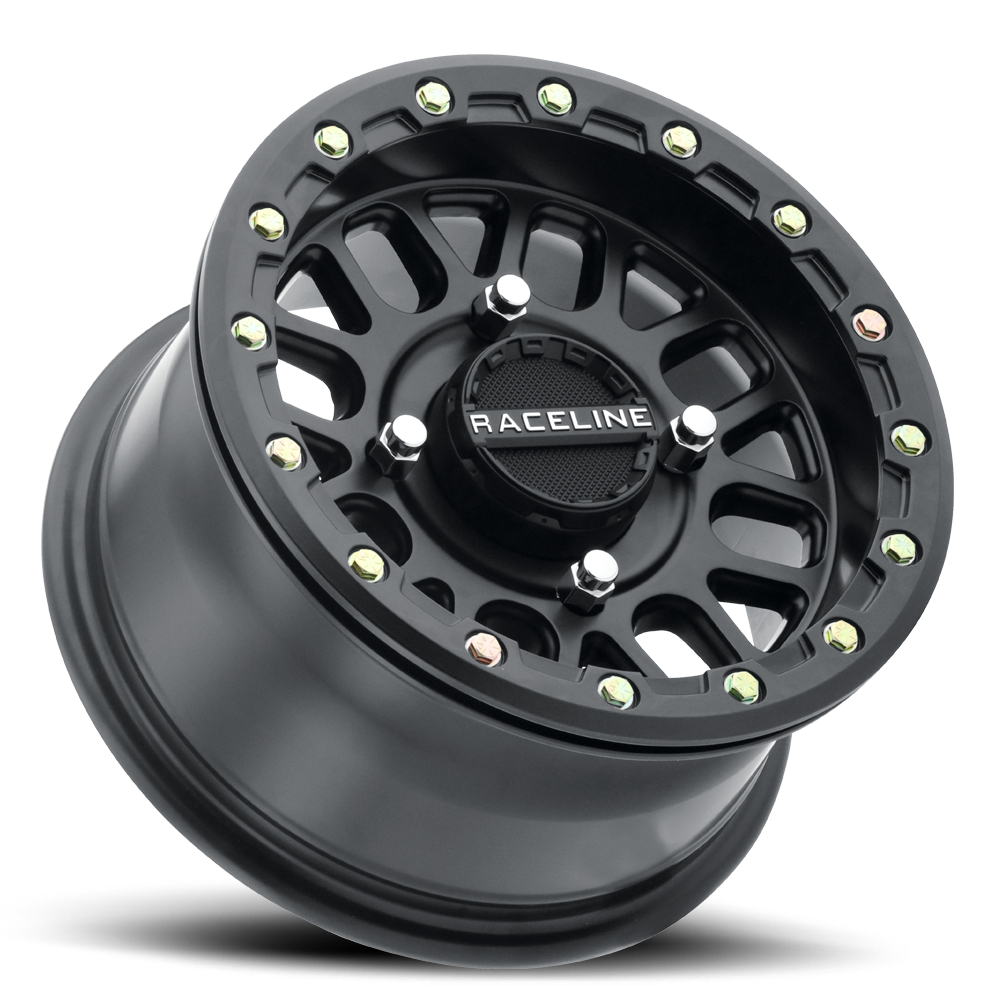

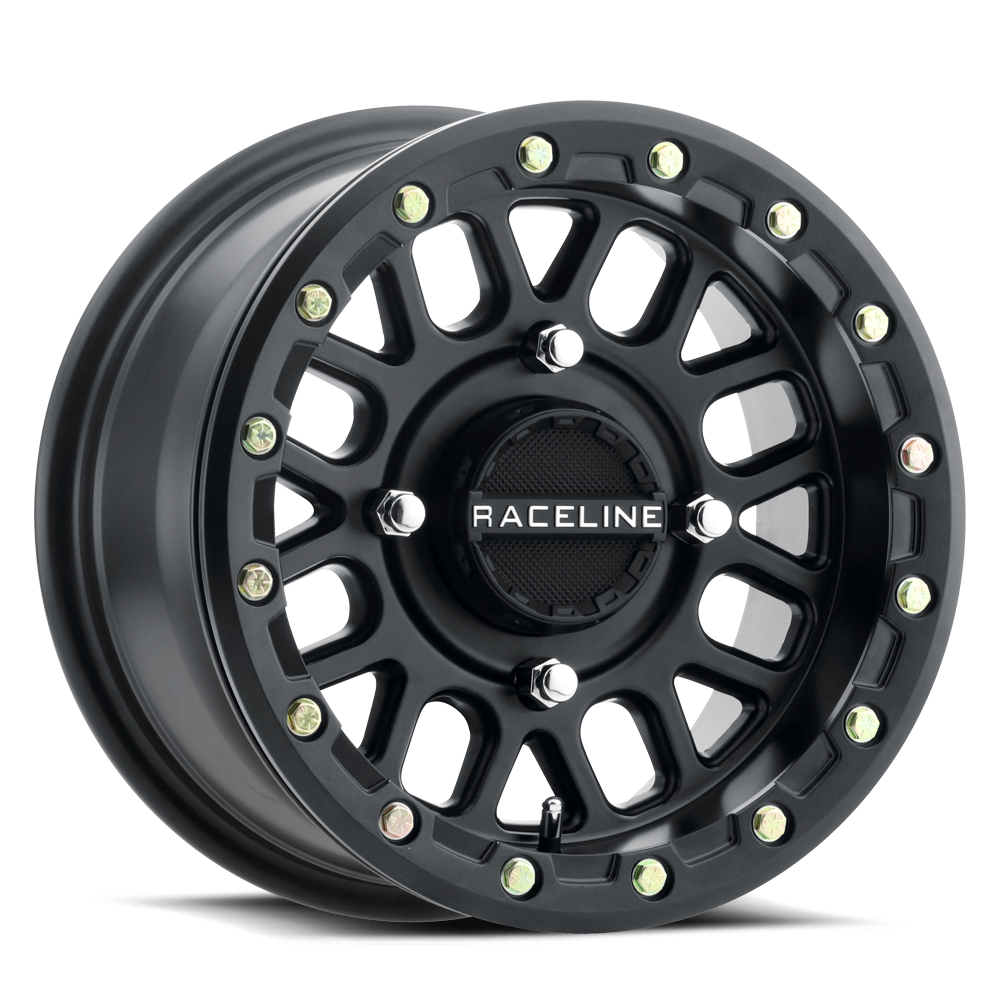

A93B Podium Beadlock
A93B Podium Beadlock
Regular price
$239.00 USD
Regular price
Sale price
$239.00 USD
Unit price
/
per
Couldn't load pickup availability
Patent #D934769 Iconic 8 spoke mesh style design
Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with US made Grade 8 zinc beadlock hardware included
UTV Beadlock Bolts = 1" length
Engineered to be one of the strongest wheels available
Available in both Satin Black and Stealth Grey finishes
Includes a satin black snap-in cap with embossed chrome Raceline logo
For thicker beaded tires, Raceline beadlock ring spacers are available to ensure proper ring seating.
Available in both 14 and 15 diameters for most UTV bolt patterns
The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more

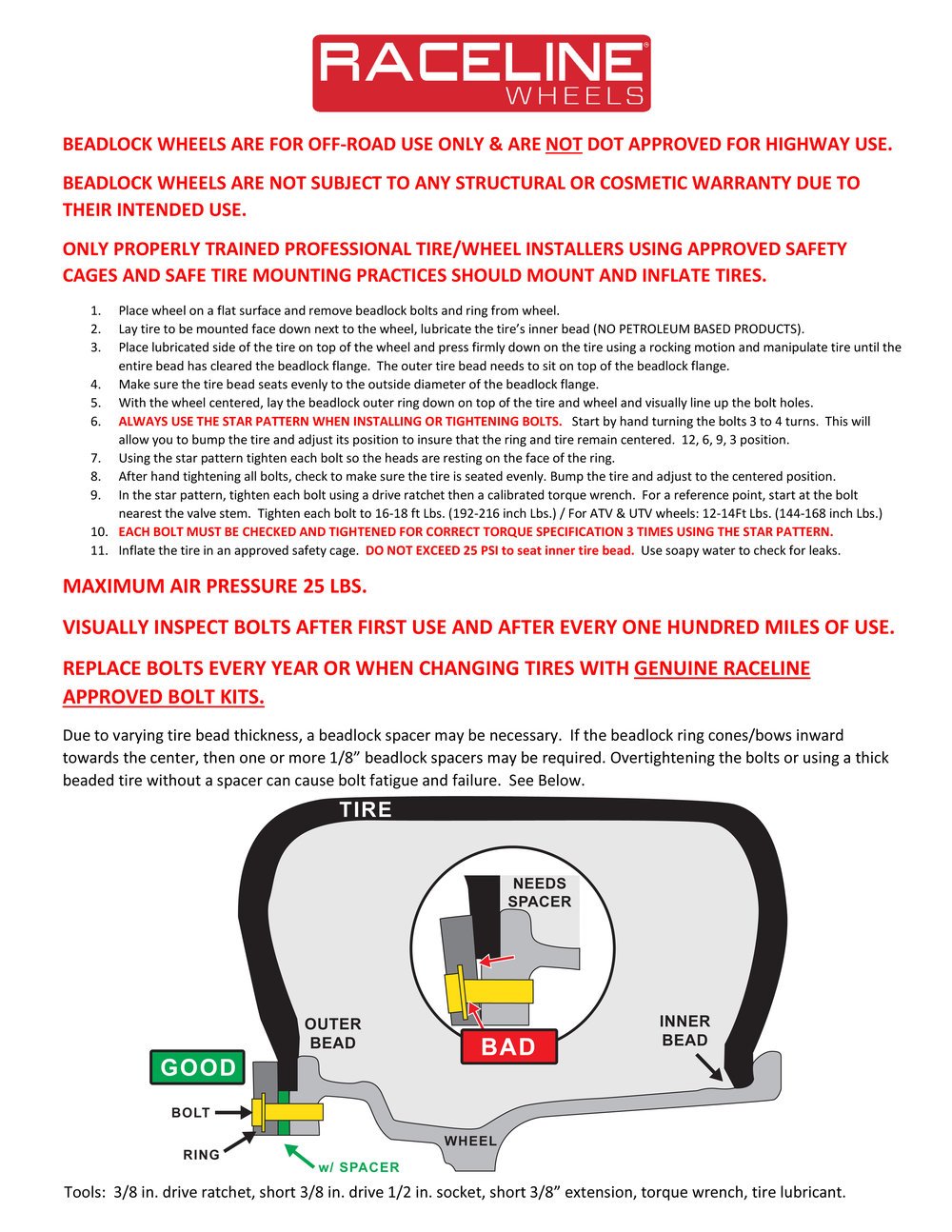

* Raceline Beadlock mounting instructions are available to view and print in the third image below.

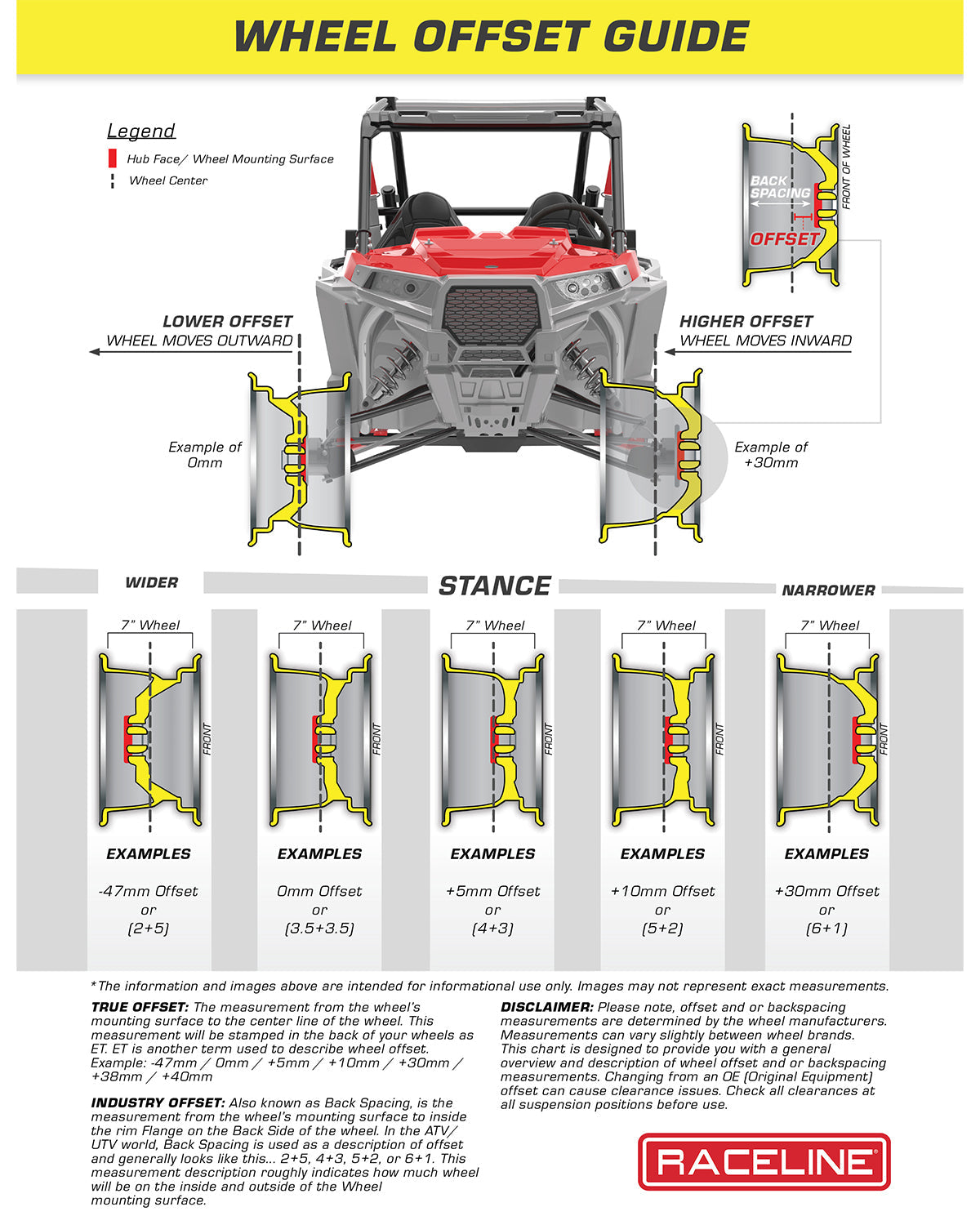

Click to View Raceline 2021 ATV-UTV Wheel Application Guide
Sizes
Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with US made Grade 8 zinc beadlock hardware included
UTV Beadlock Bolts = 1" length
Engineered to be one of the strongest wheels available
Available in both Satin Black and Stealth Grey finishes
Includes a satin black snap-in cap with embossed chrome Raceline logo
For thicker beaded tires, Raceline beadlock ring spacers are available to ensure proper ring seating.
Available in both 14 and 15 diameters for most UTV bolt patterns
The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more
* Raceline Beadlock mounting instructions are available to view and print in the third image below.
Click to View Raceline 2021 ATV-UTV Wheel Application Guide
Sizes
| Item Number | Size | BOLT PATTERN (mm) | Offset | Load Rating | Center Cap | Weight |
|---|---|---|---|---|---|---|
| A93B-47011+10 | 14X7 | 4X110 | 10 | 1200 | CPR-A82-110 | 17 |
| A93B-47037+10 | 14X7 | 4X137 | 10 | 1200 | CPR-A82-156 | 17 |
| A93B-47037+38 | 14X7 | 4x137 | 38 | 1200 | CPR-A82-156 | 17 |
| A93B-47056+10 | 14X7 | 4X156 | 10 | 1200 | CPR-A82-156 | 17 |
| A93B-47056+38 | 14X7 | 4X156 | 38 | 1200 | CPR-A82-156 | 17 |
| Item Number | Size | BOLT PATTERN (mm) | Offset | Load Rating | Center Cap | Weight |
|---|---|---|---|---|---|---|
| A93B-56037+40 | 15X6 | 4X137 | 40 | 1200 | CPR-A82-156 | 21 |
| A93B-56056+40 | 15X6 | 4X156 | 40 | 1200 | CPR-A82-156 | 19 |
Patent #D934769
Iconic 8 spoke mesh style designConstructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with US made Grade 8 zinc beadlock hardware included
UTV Beadlock Bolts = 1" length
Engineered to be one of the strongest wheels available
Available in both Satin Black and Stealth Grey finishes
Includes a satin black snap-in cap with embossed chrome Raceline logo
For thicker beaded tires, Raceline beadlock ring spacers are available to ensure proper ring seating.
Available in both 14 and 15 diameters for most UTV bolt patterns
The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more
* Raceline Beadlock mounting instructions are available to view and print in the third image below.
Click to View Raceline 2021 ATV-UTV Wheel Application Guide Patent #D934769 Iconic 8 spoke mesh style design Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with US made Grade 8 zinc beadlock hardware included UTV Beadlock B
