Raceline

A14BG Alpha Beadlock

A14BG Alpha Beadlock

$299.00 USD
$299.00 USD
Sale Sold out
Size
 More payment options
(PatentPending)

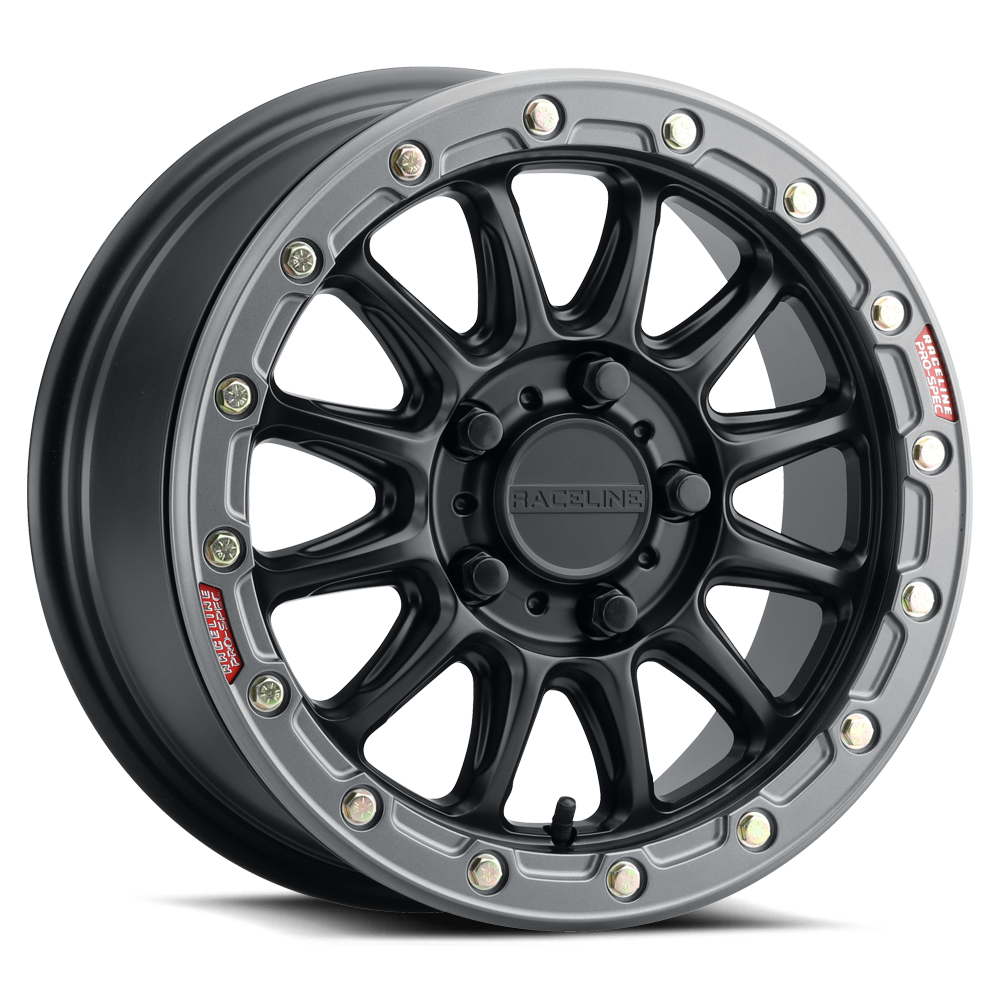

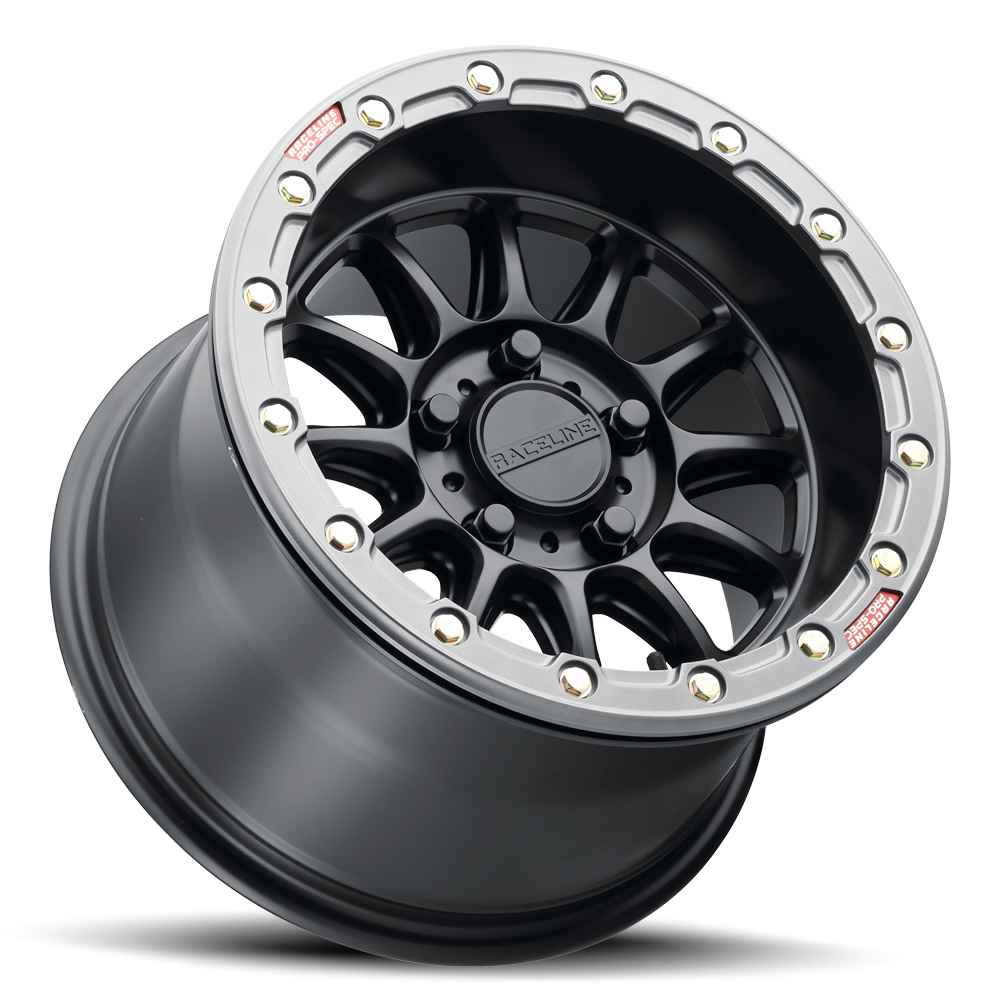

The new Raceline A14 Alpha beadlock wheel was designed exclusively for the new Polaris RZRR in 5x114.3bolt pattern. Its aggressive 12 scalloped spoke design with its contrasting beadlock ring gives it a true rally inspired race look
Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with Grade 8 zinc beadlock hardware included
Black-Out snap-in Raceline cap with contrasting red Pro Spec beadlock logos
Available in Satin Black w/ Gunmetal Beadlock Ring, Gunmetal w/ Gloss Red Beadlock Ring and Hyper Silver w/ Black Beadlock Ring
Available in 15x7, 15x10 and 17x7 exclusively for the Polaris Turbo R and Pro R
Engineered to be one of the strongest wheels available
The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more

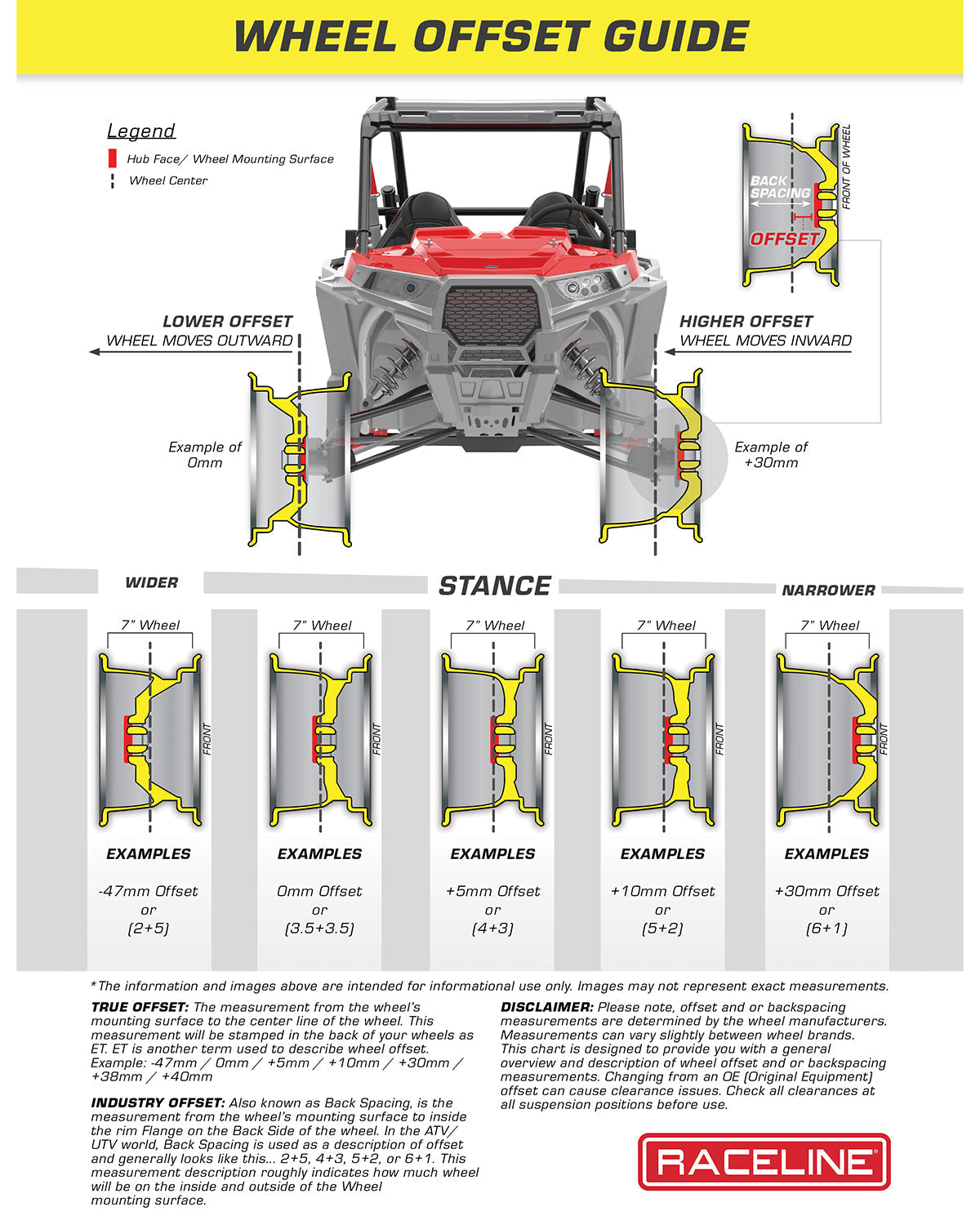

  • Click to View Raceline 2021 ATV-UTV Wheel Application Guide

    • Sizes

    Item Number Size Bolt Pattern (mm) Offset Hub Bore Weight Load Rating
    A14BG-51012+25 15X10 5X114.3 25 68 20 1650
    A14BG-57012+25 15X7 5X114.3 25 68 17 1650
    A14BG-57012+53 15X7 5X114.3 53 68 17 1650
    Item Number Size Bolt Pattern (mm) Offset Hub Bore Weight Load Rating
    A14BG-77012+25 17X7 5X114.3 25 68 26.65 1650
    A14BG-77012+40 17X7 5X114.3 40 68 26.65 1650
    A14BG-77037+25 17X7 4X137 25 110.18 26.65 1650
    A14BG-77037+40 17X7 4X137 40 110.18 26.65 1650
    A14BG-77056+25 17X7 4X156 25 132.5 26.65 1650
    A14BG-77056+40 17X7 4X156 40 132.5 26.65 1650

    (PatentPending)

    The new Raceline A14 Alpha beadlock wheel was designed exclusively for the new Polaris RZRR in 5x114.3bolt pattern. Its aggressive 12 scalloped spoke design with its contrasting beadlock ring gives it a true rally inspired race look
    Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with Grade 8 zinc beadlock hardware included
    Black-Out snap-in Raceline cap with contrasting red Pro Spec beadlock logos
    Available in Satin Black w/ Gunmetal Beadlock Ring, Gunmetal w/ Gloss Red Beadlock Ring and Hyper Silver w/ Black Beadlock Ring
    Available in 15x7, 15x10 and 17x7 exclusively for the Polaris Turbo R and Pro R
    Engineered to be one of the strongest wheels available
    The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more

  • Click to View Raceline 2021 ATV-UTV Wheel Application Guide

    • Sizes


    (PatentPending) The new Raceline A14 Alpha beadlock wheel was designed exclusively for the new Polaris RZRR in 5x114.3bolt pattern. Its aggressive 12 scalloped spoke design with its contrasting b
