Raceline

A12SB Squad Beadlock

A12SB Squad Beadlock

Regular price $295.00 USD
Regular price Sale price $295.00 USD
Sale Sold out
Size
 More payment options
(Patent Pending)

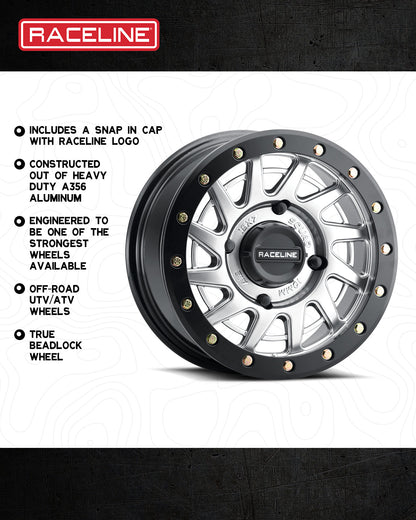

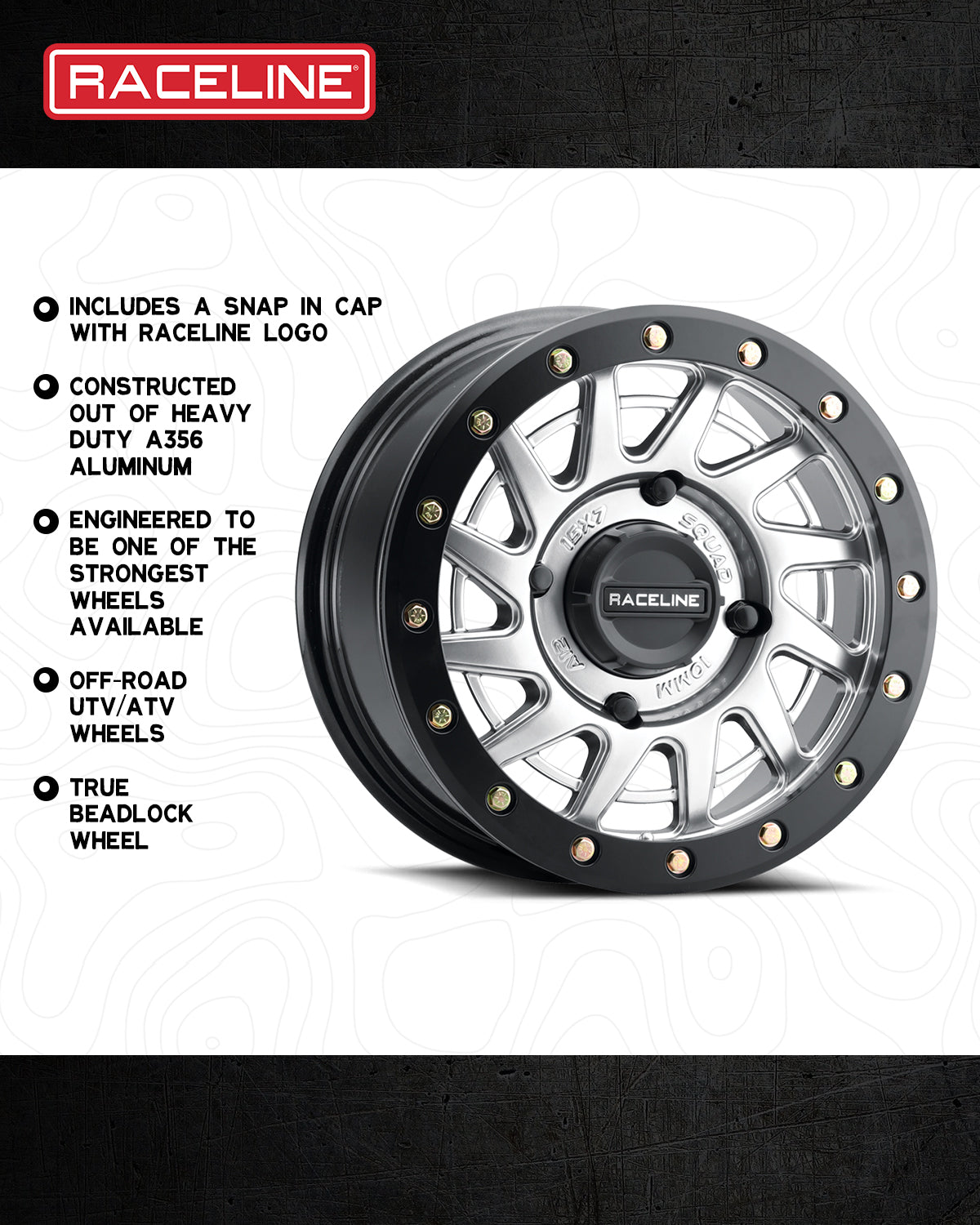

Aggressive multi-spoke directional design with an internal rib for added style and strength
Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with Grade 8 zinc beadlock hardware included
Black-Out snap in cap with contrasting Raceline logo
Available in Satin Black w/ Gunmetal Beadlock Ring and Hyper Silver w/ Satin Black Beadlock Ring
Available in 15 for most UTV fitments
Engineered to be one of the strongest wheels available
The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more

  • Click to View Raceline 2021 ATV-UTV Wheel Application Guide
  • Sizes

    Item Number Size BOLT PATTERN (mm) Offset Hub Bore Weight Load Rating Center Cap
    A12SB-57037+10 15X7 4X137 10 110.18 19 1000 CPR-A12B-156
    A12SB-57037+38 15X7 4X137 38 110.18 19 1000 CPR-A12B-156
    A12SB-57056+10 15X7 4X156 10 132.5 19 1000 CPR-A12B-156
    A12SB-57056+38 15X7 4X156 38 132.5 19 1000 CPR-A12B-156

    (Patent Pending)

    Aggressive multi-spoke directional design with an internal rib for added style and strength
    Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with Grade 8 zinc beadlock hardware included
    Black-Out snap in cap with contrasting Raceline logo
    Available in Satin Black w/ Gunmetal Beadlock Ring and Hyper Silver w/ Satin Black Beadlock Ring
    Available in 15 for most UTV fitments
    Engineered to be one of the strongest wheels available
    The Official Wheel of Ultra 4 Racing, NORRA, MidAmerica Outdoors, Southern Rock Racing Series, Nor Cal Rock Racing and more

  • Click to View Raceline 2021 ATV-UTV Wheel Application Guide
  • Sizes

    (Patent Pending) Aggressive multi-spoke directional design with an internal rib for added style and strength Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with Grade
